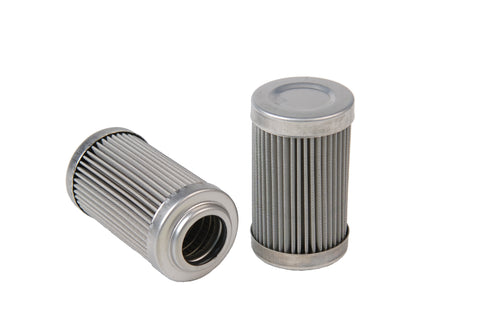

Aeromotive 10 Micro Replacement Microglass Element

P/N 12650 10-M Micro-glass Replacement Element
Service element for Aeromotive Billet, in-line filters
Fits all 2" OD x 5-1/2" long ORB-10 filter housings.
Includes new housing o-ring to reseal the filter assembly.

Suitable for use on the pressure side of a fuel pump only, with gasoline, diesel, ethanol and methanol fuels.

• Recommended for applications burning pump gas, racing gas, diesel fuel, jet fuel, av-gas, etc.

• Approved for use in alcohol fuels including ethanol and methanol.

• Over 60-sq. inches of element surface area supports high flow while providing good service life.

• Flow capacity of up to 250 GPH (4.17 GPM) with less than 1-PSI pressure drop.

• Supports up to 2,000 Flywheel HP, Forced Induction, on gasoline.

• Supports up to 1,400 Flywheel HP Forced Induction on E85.

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

• Ideal for gasoline and ethanol burning EFI engines with small to medium Aeromotive fuel pumps, from the Phantom 200 through the Eliminator pump.

• Popular for demanding gasoline and ethanol/methanol, carbureted engine applications using Aeromotive HO-Series, SS-Series and A2000 fuel pumps.
