Nexus S2 Plug 'n' Play Adapter Harness Kit - Honda OBD-I HT-212300

$2,190.00 USD
$2,190.00 USD
Sale Sold out
ECU OVERVIEW

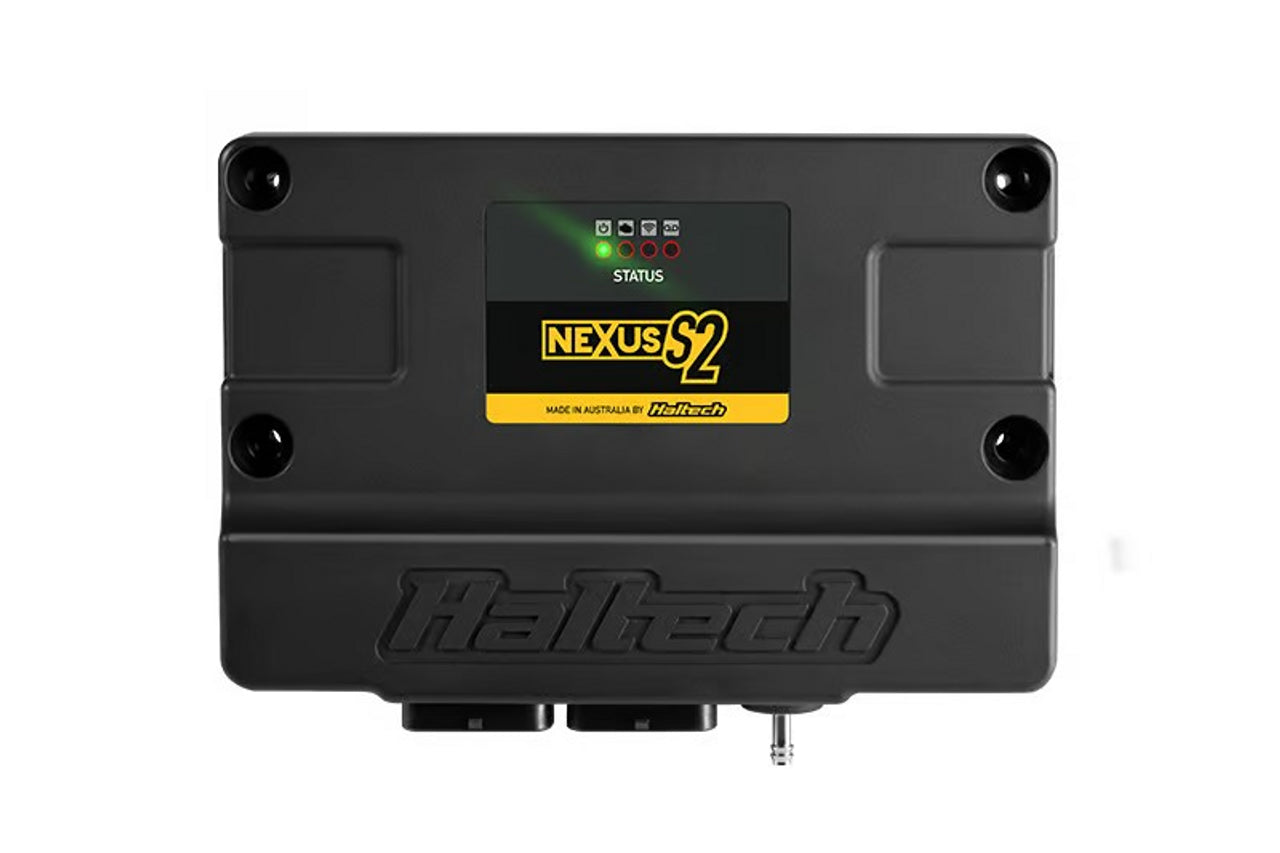

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
  • 4 x peak/hold injector drivers (can be used as low side drive outputs)
  • 4 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.



  • A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.

Suits: Plug 'n' Play replacement of the factory ECU for Honda OBD-I B-Series 92-95 Civic, Integra and Prelude. 90-95 Accord. Manual transmission only.

Includes: Nexus S2 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Manual transmission only.
