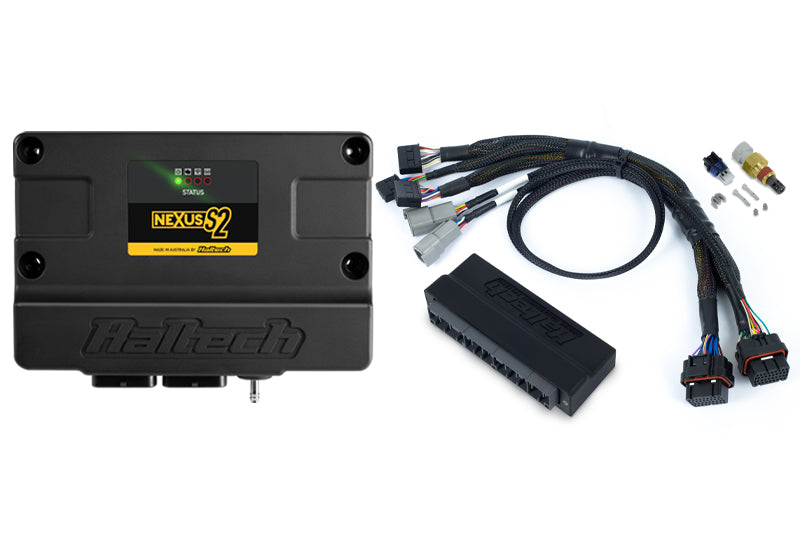

Nexus S2 Plug 'n' Play Adapter Harness Kit - Honda S2000 (AP1 / AP2 ) HT-212314

$2,190.00 USD
$2,190.00 USD
Sale Sold out

Suits: Plug 'n' Play replacement of the factory ECU for Honda S2000 AP1 (00-04), AP2 (05) Non-DBW

Includes: Nexus S2 ECU, Injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.

Notes: Non Drive-By-Wire (DBW) application only. Using a Nexus S2 instead of a Nexus S3 will reduce some of the car's factory functionality. Please see the quick start guide for further information.

ECU OVERVIEW
Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
  • 4 x peak/hold injector drivers (can be used as low side drive outputs)
  • 4 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination
If you are using a factory harness and are after an easy ECU upgrade, take a look at Haltech Plug 'n' Play Adapter Kits. These adapters plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
  • A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
  • The quick start guide will walk you through installation of the Haltech Plug 'n' Play adapter into your vehicle.
